SEEC INT. AUDIO SYSTEMS "GRAPHIC SITE"

The poor quality of these graphics is due to scaling +. If you wish to have documentation, contact SEEC and leave your I.D. on our E-mail address at the botten of this page.

( 8 ) Eight plots.

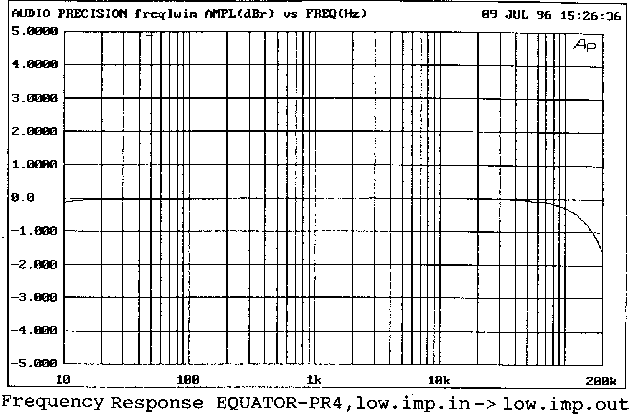

Preamplifier tested @ 0 dB in and 0 dB out

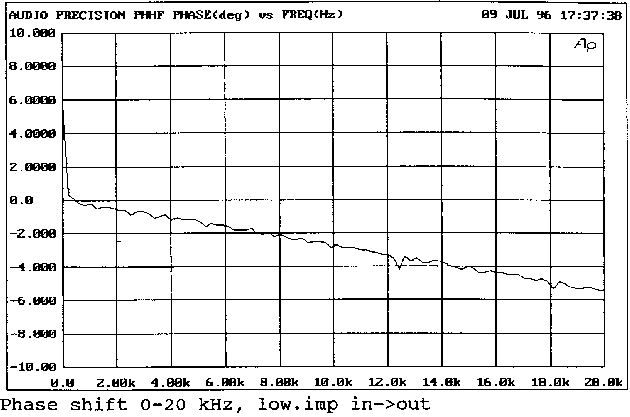

Phaseshifting plot 200KHz. Essential for listening impression.

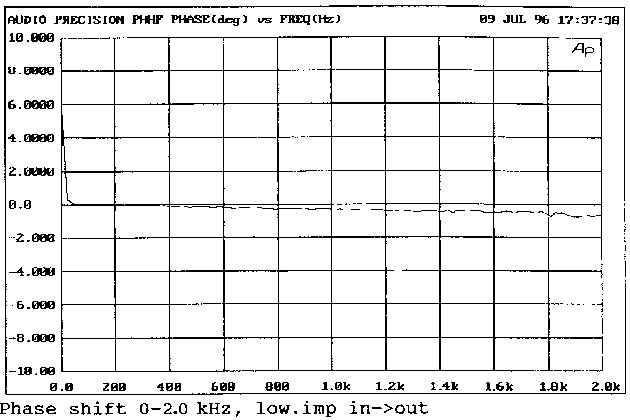

Phaseshifting plot 2.0KHz. Crucial area for stageing. (Less then 0.8 degree angle).

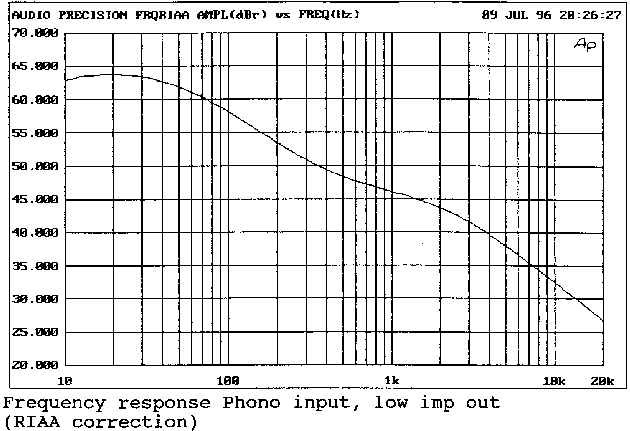

Smooth phono stage for audiophiles.

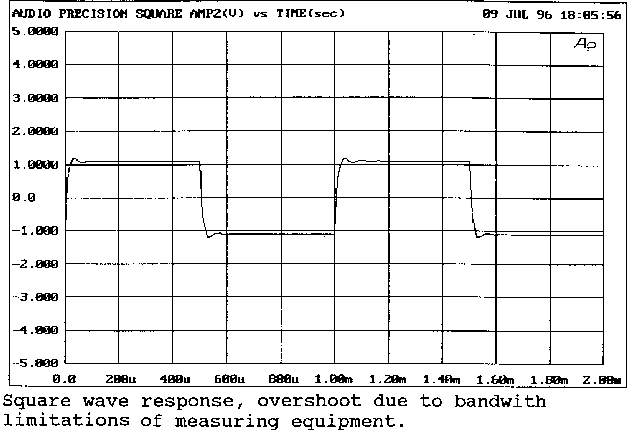

No comment, but much better then projected. (see AP text)

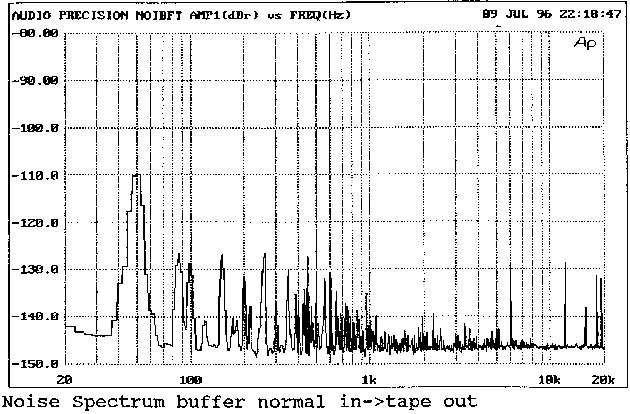

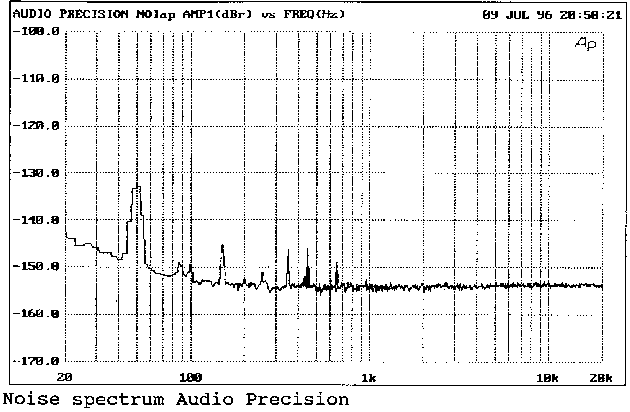

Absolute maximum noise spectrum Audio Precision measuring SYS11 equipment.

Build in to have "NO" mutual influence on other outputs.

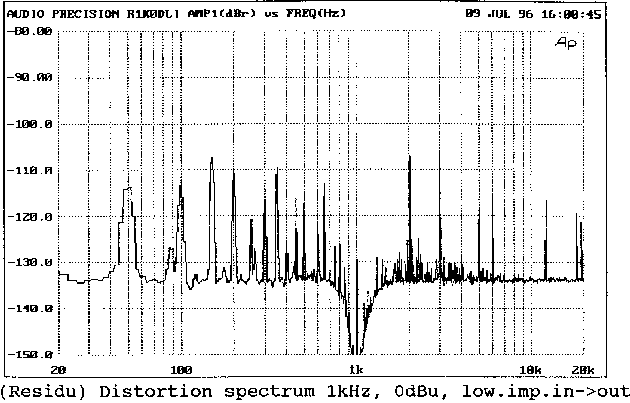

Distortion floor reaches -133dB. 1st harmonic reaction on A.P. dip filter @ 2.0KHz
